IBC Cage Frame Automatic Welding Machine with 50sec/pc Efficiency and 4 Sets MF DC Power Source for Bulk Container Production

HWASHI IBC Cage Automatic Welding Machine Making Line 50sec/Pc

Description Of The IBC Cage Frame Automatic Production Line

The IBC cage frame automatic production line is mainly used to manufacturing the IBC cage frame. It is composed of cage frame automatic welding machine, mesh unloading mechanical arm, turnover table, automatic frame bending machine, locking machine, hole making and punching machine, automatic production line moving mechanical arm. The complete line requires only 3-4 person. Operator only need to do the material loading to the frame welding machine, and do unloading at the end of the line. Also we can equip the line with automatic base frame welding machine and automatic unloading mechanical arm for the base frame.

Running Process Of The IBC Cage Frame Automatic Production Line

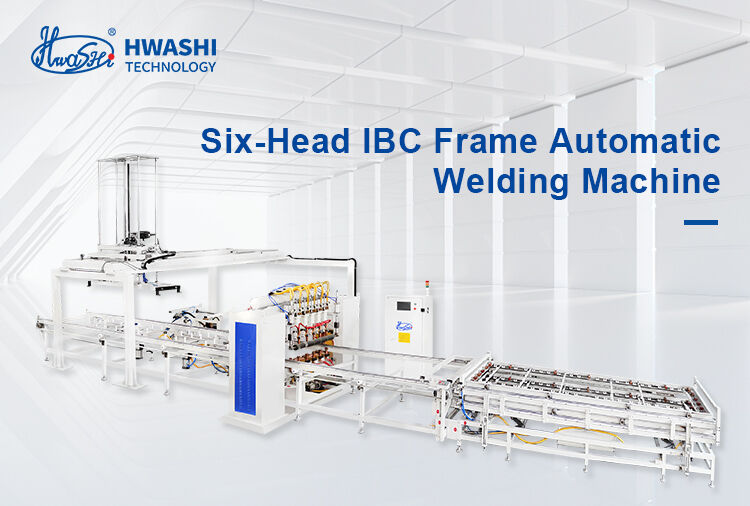

Description Of The IBC Cage Frame Welding Machine

The IBC Cage Frame Welding Machine is engineered with precision, featuring four sets of advanced MF DC power sources.

This sophisticated design enables the simultaneous execution of welding at six different spots, showcasing a remarkable capacity for multitasking. Introducing a dual-layer fixture feeder enhances operational efficiency – while one fixture is actively engaged in the welding process, the other can seamlessly load materials, ensuring a continuous and streamlined workflow.

The welding apparatus seamlessly transforms tubes into a distinctive flat mesh configuration, ensuring welds of unparalleled strength and robust quality. The welding process is efficiently completed in approximately 50 seconds, underscoring both speed and precision in the fabrication of each flat mesh.

Features of The  IBC Cage Frame Welding Machine

Welding Efficiency: 50sec/pc
Welding Source: 4 sets MF DC Power Source
Feeder Platform Option: Single Layer or Double Layer
Unloading System Option: Manual Unloading or Automatic Mechanical Arm Unloading

Technical Parameter Of IBC Cage Frame Welding Machine
