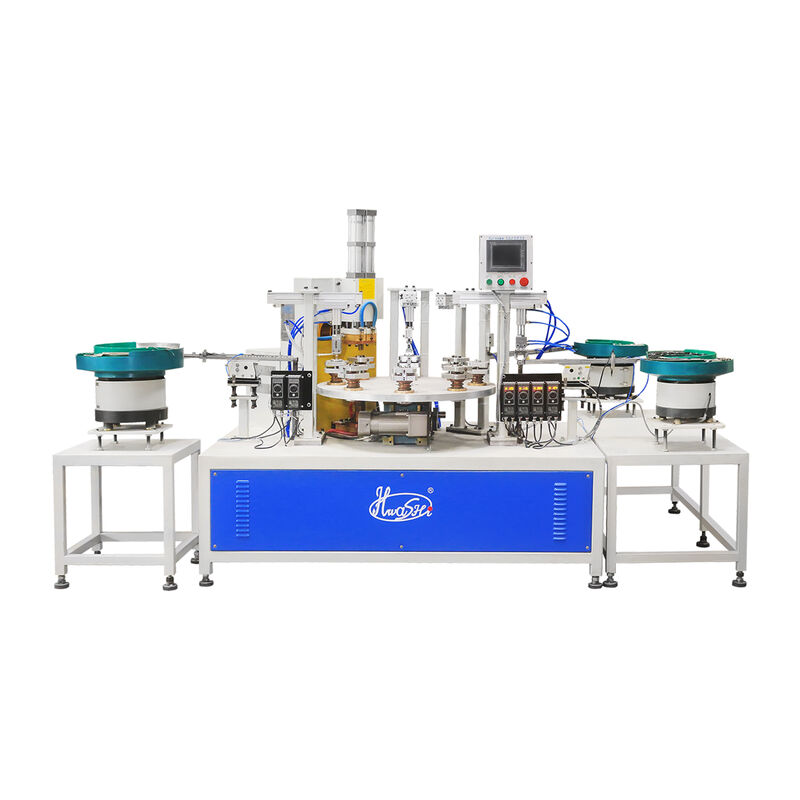

The HWASHI Full Automatic Rotary Table Spot Welding Machine for capacitor cap welding is designed for automatic welding, rotating, and discharging operations. Featuring 8 welding positions, the machine enables continuous cycle working for efficient production.
The machine utilizes medium frequency inverter power source technology, offering high power factor, energy efficiency, and consistently stable, reliable welding spots. By simply changing the fixtures (welding moulds), the machine can accommodate different product types and dimensions.
The main welding component is equipped with an automatic rotating device. Operators can load up to 8 work pieces simultaneously. When welding commences, the system automatically processes each piece in sequence - after welding the first piece, the rotating device moves the next piece into position, creating a continuous cycle. Meanwhile, welded pieces are automatically discharged, allowing operators to continuously load new work pieces for uninterrupted operation.
We design specialized fixtures tailored to your specific product requirements.
Automatic Vibration Feeding Plate - Automatically feeds small parts to the fixture, enabling fully automated assembly and welding processes.
Automatic Loading and Unloading Mechanical Arm - Ensures seamless material transfer throughout the welding process.
| Parameter | Specification |
|---|---|
| Input Voltage | 380V three-phase |
| Input Current | 150A |
| Output Voltage | DC11.6V |
| Max Short Circuit Current | 32000A |
| Welding Models | 32 types |
| Rotary Table Diameter | 800mm |
| Rotary Table Material Positions | 6-8 positions |
| Rotary Table Rotating Speed | 0.5m/sec |
We provide comprehensive customized services. Our engineering team will discuss your specific welding requirements and develop suitable technical proposals based on your samples or drawings.
