مكان المنشأ:
الصين
اسم العلامة التجارية:
HWASHI
إصدار الشهادات:
CE/CCC/ISO
رقم الموديل:
WL-CD-50K
فيديو
فيديو

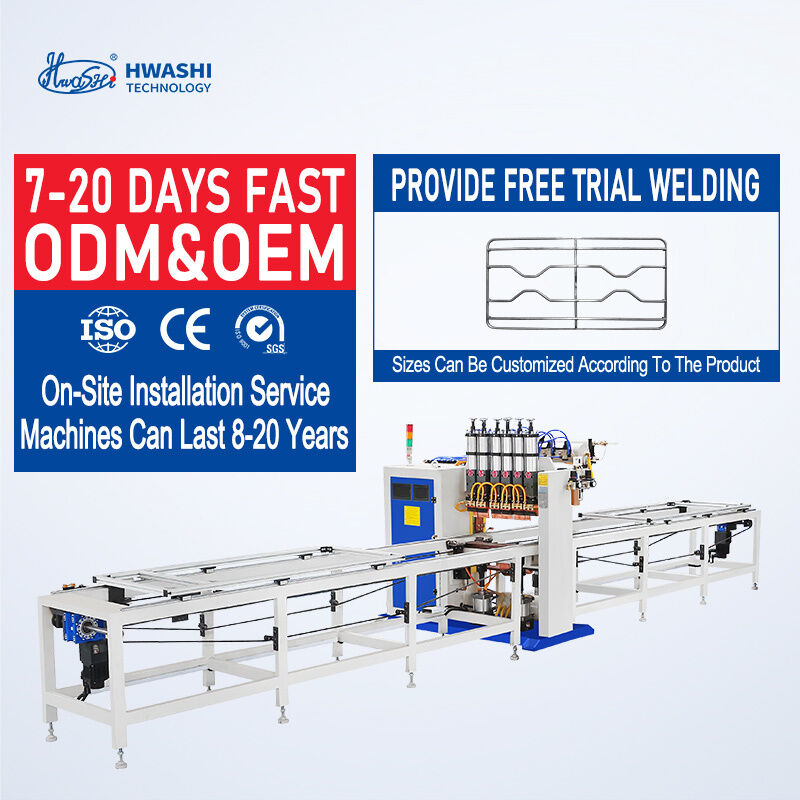

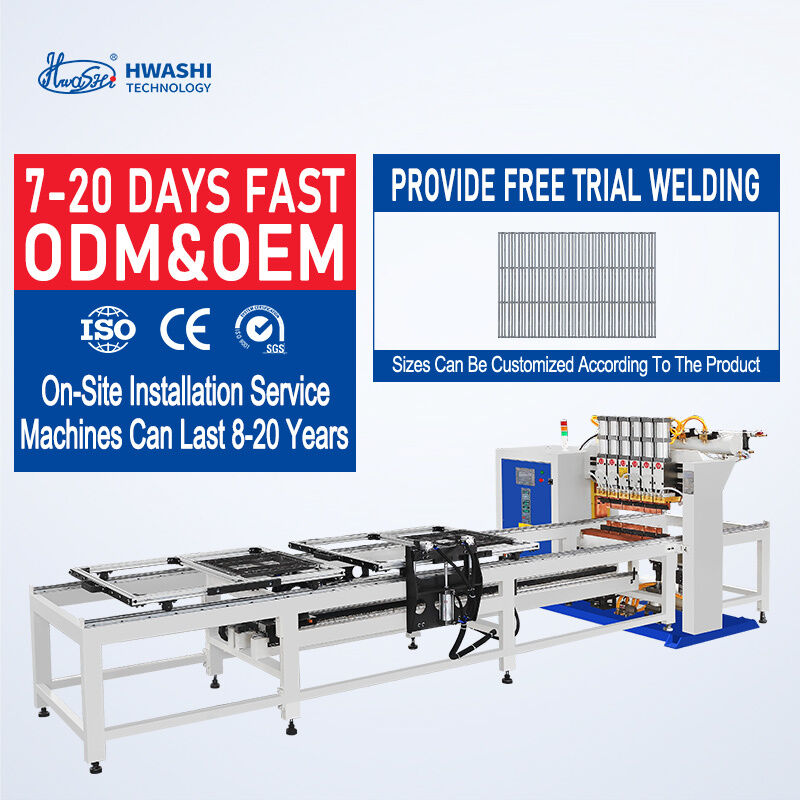

This industrial wire mesh welding machine features a Three-Phase MF DC Power Supply System designed for precision welding operations. The single-head long arm welding structure with automatic X and Y axis workpiece mold movement enables fully automated welding through coordinate data and current input.
| Model | WL-TSP-100/150K |
|---|---|
| Input Power (V/φ) | 380/3 |
| Rated Power (KVA) | 100/150 |
| Applicable Material | Stainless Steel, Carbon steel, Aluminum, Metal |
| Electrode Force (KG) | 250-400 |
| Welding Thickness (MM) | 1-5mm |
| Warranty | 1 year |
| Mesh Welding Range | 1000mm * 1000mm |
The Three-Phase MF DC Power Supply System delivers precise, stable DC output through three-phase input, optimized for industrial wire mesh production. This allows operators to prepare materials for the next welding cycle while current work continues, significantly reducing labor costs and maximizing operational efficiency.
| Product Name | Wire Mesh Welding Machine |
|---|---|
| Welding Power Source | Three-phase MF DC or two-phase AC power supply |
| High Speed Wire Processing | 5* normal speed for 2mm to 4mm wires |
| 2D Wire Handle Bending | 2-6mm wire bending capability |
| Welding Heads and Fixtures | Custom designed per product drawings |
| Wire Frame Double T-Butt Machine | Dual-head cross bar welding design |
Ideal for manufacturing wire mesh fences, cages, grids, and shelves. Capable of welding various wire diameters and mesh sizes with 3000mm effective length and 1200mm width. Features full-automatic stainless steel mesh welding with multiple simultaneous welding heads for high-volume production.
Delivery: 7-30 working days after payment
Packaging: Sea-worthy wooden case
Capacity: 50 sets/month
Payment: L/C or T/T negotiable
