مكان المنشأ:
الصين
اسم العلامة التجارية:
HWASHI
إصدار الشهادات:
CE/CCC/ISO
رقم الموديل:
WL-SC-75K

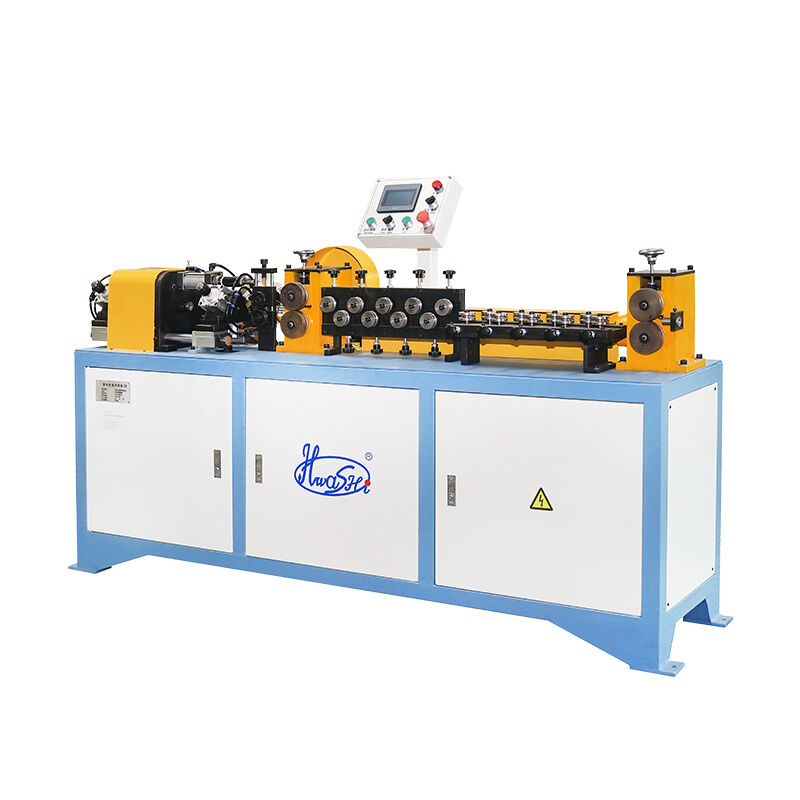

This high-speed wire cutting machine is developed and designed by our company, featuring wire feeding speeds reaching 80m/min - the fastest in China. The machine delivers cutting length accuracy of ±0.5mm with automatic length adjustment via an integrated touch screen control system.
Key features include output preset and shortage alarm settings, efficiency three to four times higher than traditional wire straightening and cutting machines, convenient adjustments, and superior cutting precision. The equipment improves production line efficiency while saving manpower.
Widely used for processing iron wire, stainless steel wire, galvanized wire, aluminum wire, and other metal wires. The equipment features a rational structure, stable and reliable operation, simple operation, and high automation levels, enabling one operator to manage multiple machines simultaneously.
| Parameter | Specification |
|---|---|
| Input Voltage | 440V, Three-phase 50Hz |
| Applicable Tube | Bundy tube |
| Working Air Pressure | 0.6-0.8Mpa |
| Tube Coil Specification | ￠4.76~￠6.35mm 4.76 & 8.0mm |
| Tube Wall Thickness | 0.4~1.5mm |
| Output Power | 1.12KW |
The Bundy Tube Straightening and Cutting Machine is specifically designed for straightening and cutting Bondi tubes, widely used in refrigerator and air-conditioning condenser manufacturing industries.
